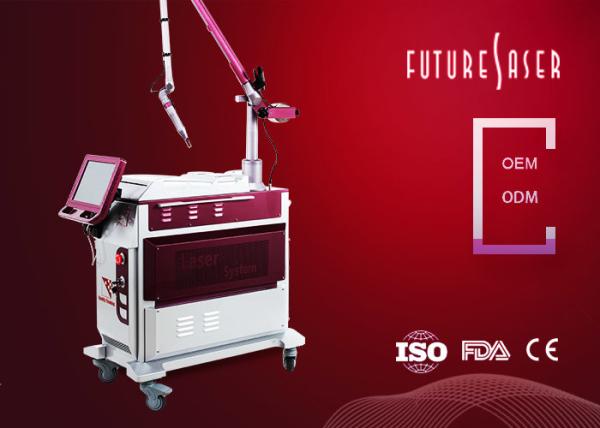

Future Laser Q switch Nd yag machine for Tattoo removal skin rejuvenation

Multiple Q switched Nd yag 1064nm&532nm laser

Pigment removal
Tattoo Removal: black, blue, brown, red and different kinds of tattoos
Eliminates the age spot, birthmark, freckle, melasma, ota
Skin Rejuvenation, skin whitening
Treatment Theory - Q switched Nd Yag Laser

High focus 1064nm/532nm laser energy transmits/transfer instantaneously to target lesion pigmentation site within extremely short period and then results in an instantaneous pigmentation blasting.The pigmentation tiny/small particles are shattered into fragments ,some fragments in the epidermis will be removed directly and deep tiny fragment in the dermis will be devoured/absorbed by phagocytes and then eliminated by lymphatic system,so achieve the best result for pigmentation removal.

Feature

Technical parameter - Q switched Nd Yag Laser

Mode	Zeus
Laser Type	Q switched ND YAG Laser
Wavelength	1064nm/532nm
Laser transmission	South Korea imported 7 articular optical arm
Spot size	4-10mm
Pulse width and Frequency	Single Pulse: 6ns; 1-10Hz PTP: 12ns; 1-8Hz Long Pulse: 300us; 1-5Hz
Pulse energy	Single Pulse: 100-800mj/cm2 (1064nm) Single Pulse: 50-400mj/cm2 (532nm) PTP: 100-1064mj/cm2 (1064nm) PTP: 50-800mj/cm2 (532nm) Long Pulse: 100-45000mj/cm2 (1064nm) Long Pulse: 50-25000mj/cm2 (532nm)
Honeycomb MLA	4-10mm
Screen	10.4" touching type true color LCD display
Power supply	AC230V±10% 60/50Hz
Infrared light	635nm
Number of handpiece	standard: 1 pc Zoom handpiece; option: 1pc fractional handpiece.
Cooling system	Closed-off water circulation, Insaide+air cooling
Dimension of machine	81*42*84cm
Dimension of package	machine: 92*47*92cm optical-arm: 110*51*24cm
Net Weight	80Kg
Gross Weight	100Kg
Package	aluminum alloy case

Operation System - Q switched Nd Yag Laser

Multi-mode output: single pulse, long pulse, MLA mode
User friendly software means that operator error is drastically reduced.
Easy for understanding and operation.


FAQ
1. What is the Payment Terms?
Re: T/T, Western Union, Ali Pay, etc.
2. How do you delivery the machine?
Re: Door to door service, DHL, TNT, UPS, FEDEX, air cargo, etc.
3. What’s your warranty?
Re: 12 months warranty for host machine and whole life maintenance.
4. Once the machine have any malfunction during the operation, how to deal with?
Re: Please contact us and our after-sale service team will support you immediately and solve the machine’s problem within 1-3 days.
5. Do you offer OEM/ODM service?
Re: Yes. Welcome to contact us for more details.
